NanoVIP ONE has been designed to make professionals work easy and lighter
is small and light to be easily stored everywhere
provides powerful functions for professional applications at an affordable price
Developed thinking to easiness of se.
with three different levels.
like Waveform, Harmonics, Power Factor.

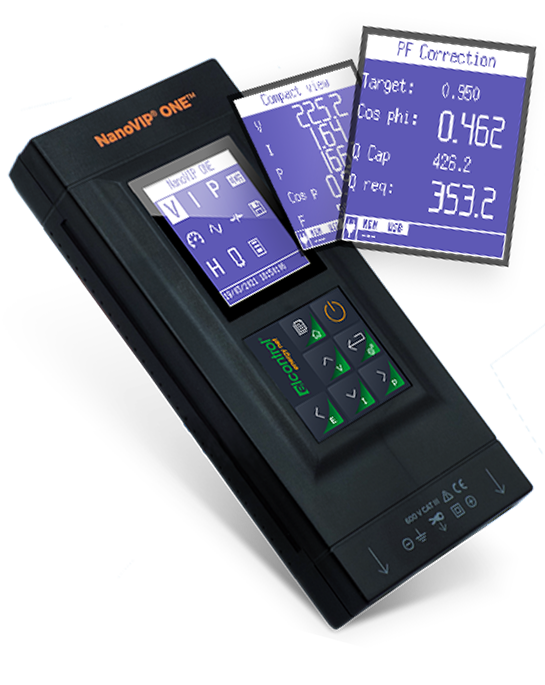

NanoVIP ONE is a compact and light power analyzer able to cope with a wide range of applications starting from basic day by day measurements up to mst demanding applications in electrical energy field.
NanoVIP ONE has been developed thinking to easiness of use and user can choose between three different way of data browsing according to his preferences. Quickest and easiest use includes all most common functions but, in case of need, user can dig into more detailed data or open more specific functions like Waveform, Harmonics, Power Factor etc.
A rolling storage buffer of last 30 minutes measures make very powerfull and easy to understand what happened in case of event.
An high contrast graphic LED display distinguishes NanoVIP ONE from same segment competitor devices
Direct keyboard access, Carousel and icon Menu makes easy and friendly browsing data and functions.
80mm width, 30mm thickness and 175mm height 220g (315g including batteries) make NanoVIP ONE one of most compact devices of its segment.
220g of weight (315g including batteries) make NanoVIP ONE an ultra-light device in its segment.
4Gb of internal memory allows user to store measurements to be then downloaded to PC for more detailed analysys with NanoStudio software (availble for download from Elcontrol website).
NanoVIP ONE includes a function to automatically calculate the reactive power required to match a cos phi target set by user.
Up to 100A AC
Up to 200A AC
Up to 3000A AC
Yes, it works with 4x1,5 AA stylo batteries (rechargeable or not); 4 AA stylo (not rechargeable) are part of package.
Yes: external power supply is available as optional.
Graphic dispay allows an easy analys of data but data can be stored to internal memory and downloaded on PC to be analyzed with NanoStudio software.
No; NanoStudio can be downloaded for free from our website.
NanoVIP ONE is a 600V CATIII device so it can be used on any system belonging or equivalent to this classification with a maximum phase to phase tension of 690V.
Yes, up to 600VDC.
Yes, NanoVIP ONE can measure three phase balanced systems.
Yes; NanoVIP reports a complete V & I harmonics histogram up to 25th order.
